Suture Braiding Machine

Our suture braiding machine series is your perfect choice for the braiding of round, flat, or RTF (round to flat) sutures in all u.s.p. suture specification . With our M1 spindle, it can braid yarns as fine as 20D. With automatic braiding pitch set up system and constant tension take-up device, it can guarantee you a precise and stable braiding process.
QQ图片20180920093821
XO-Button-Cortical-Fixation-Device-blue-suture

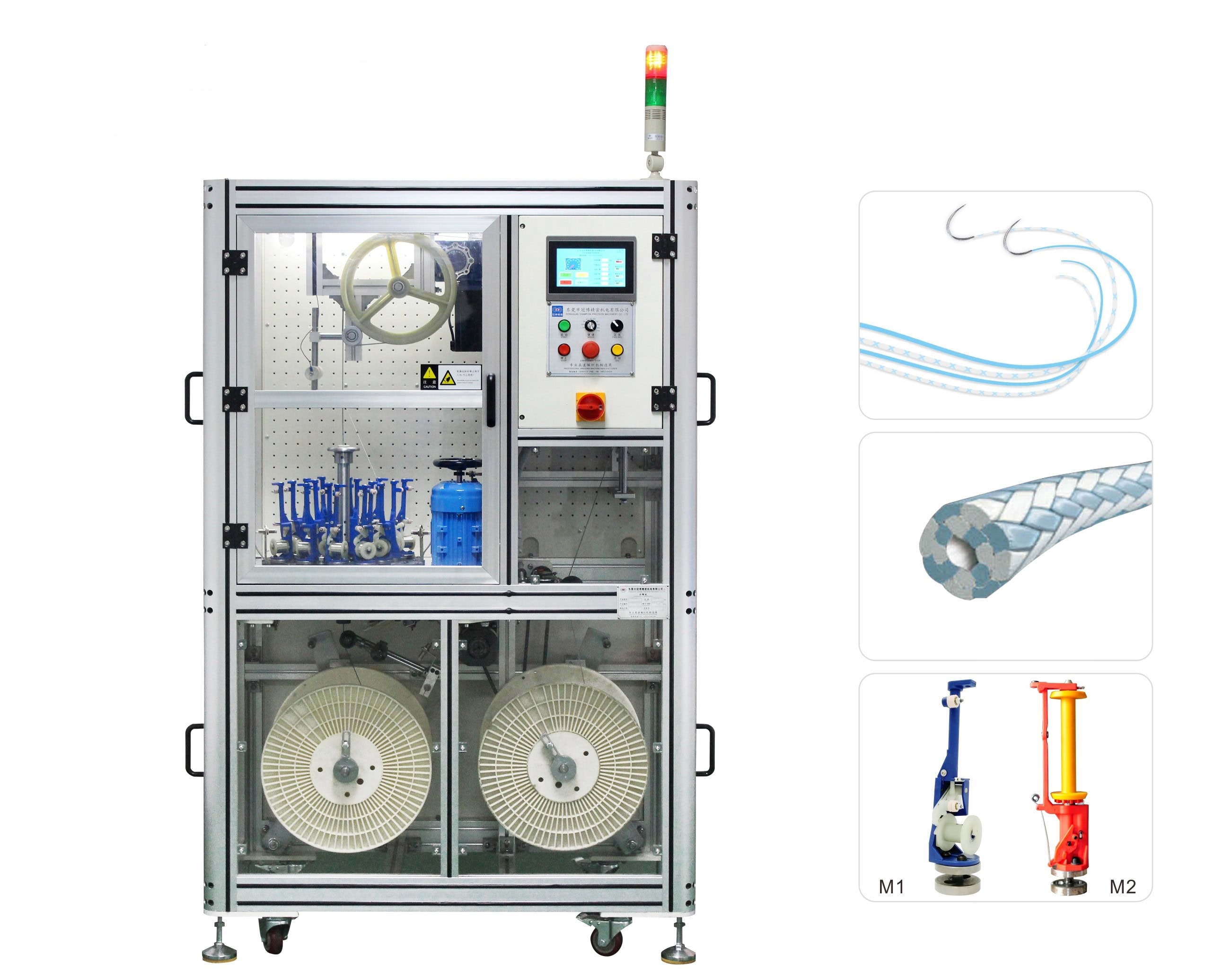

MB suture braiding machine
MB medical braiding machine
Play Video



Technical specifications:

ModelMB-16A1SSpindleM1/M2
Number of spindles16Bobbin volume27cc/140cc
Voltage/power220v/0.55kwBraiding materialSILK/Nylon/PET/
PGA/PGLA/UHMWPE
Table speed320 rpmCore diameter≤3mm
Output640 Picks/minReel sizeФ200-400mm
Braiding density10-300PPIControl panel 7 inch touch screen

Other Models:

ModelNumber of spindlesVoltage/powerTable SpeedOutput
MB-08A1S8220V / 0.37KW320 RPM520 Picks/min
MB-12A1S12220V / 0.55KW320 RPM640 Picks/min
MB-24A1S24220V / 0.75KW320 RPM640 Picks/min
