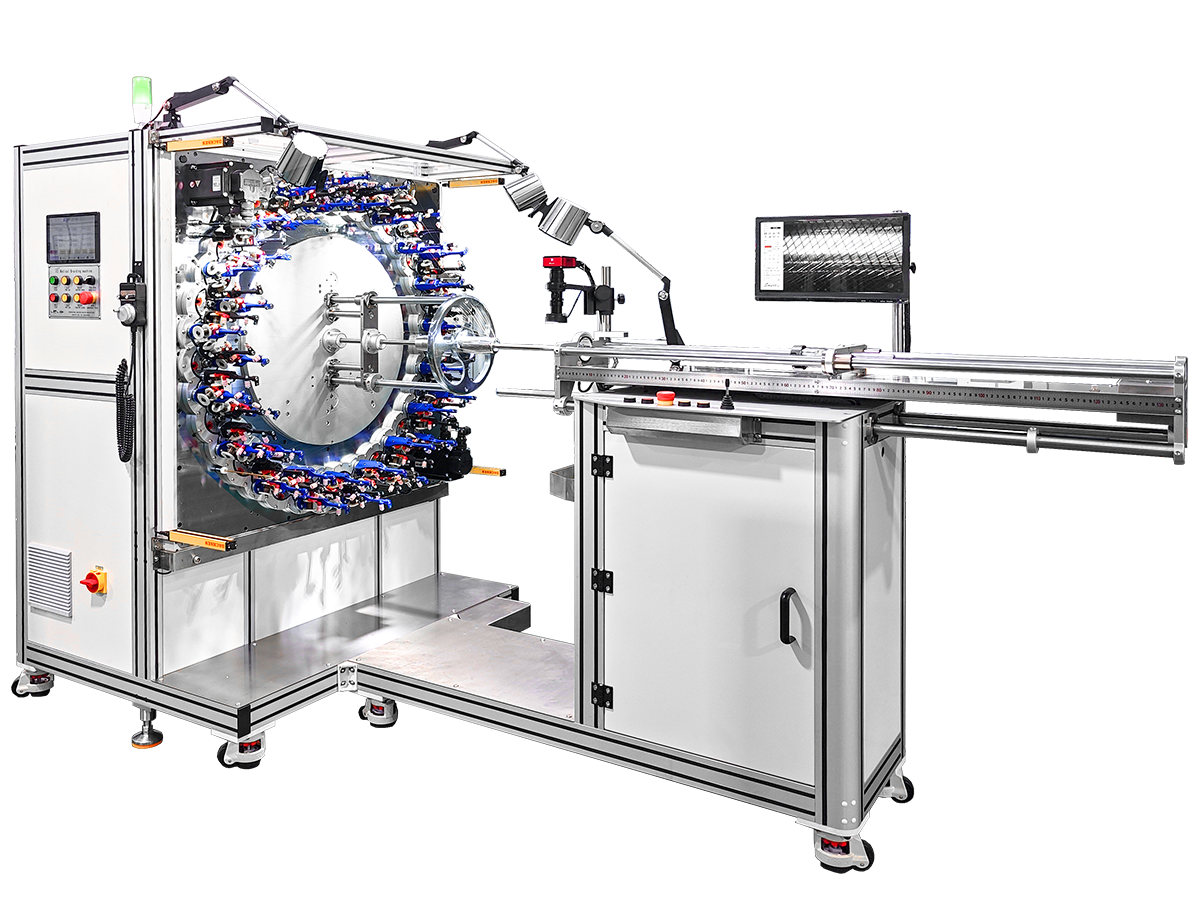

HORIZONTAL STENT&OCCLUDER BRAIDING MACHINE
HORIZONTAL STENT&OCCLUDER BRAIDING MACHINE
MB-72A1WZ Horizontal Stent & Occluder Braiding Machine is a high-precision horizontal braiding equipment for medical stents and occluders. It supports multiple raw materials, runs stably with high efficiency, ideal for medical device manufacturing.
HORIZONTAL STENT&OCCLUDER BRAIDING MACHINE MB-72A1WZ
·Vertical design specifically for large-scale production of small-diameter flexible continuous catheters.
·Compact and space-saving design reduces energy consumption, offering a highly cost-effective braiding solution.
| Braiding Material : | Nitinol,Stainless Steel,Cobalt Chromium,DFTWire,PLLA,Magnesium,etc |
| Fibers: | Nylon, Polyester, Dyneema, Kevlar, Vectran, Speectra, PET, PEN, PP, PEEK, etc |
| ·Material size: | Starts from Φ0.0125mm/0.0005″ |
| ·Braiding PPl: | 10-300 PPl,with variable PPI braiding,gradual and abrupt change |
| ·Output: | 480 picks/min |
| Carrier Number： | 72 |
| Size： | L3900*W1400*H2100mm |
| Weight： | 1000KG |
| Total Power： | 4KW |
| Weight： | 1000KG |
| Table Speed： | ≦320rpm |
| Braiding Pattern: | 72 Carrier: 1-2&2-2 36 Carrier: 1-1 24 Carrier: 1-2&2-2 12 Carrier: 1-1 8 Carrier: 1-2&2-2 4 Carrier: 1-1 |
