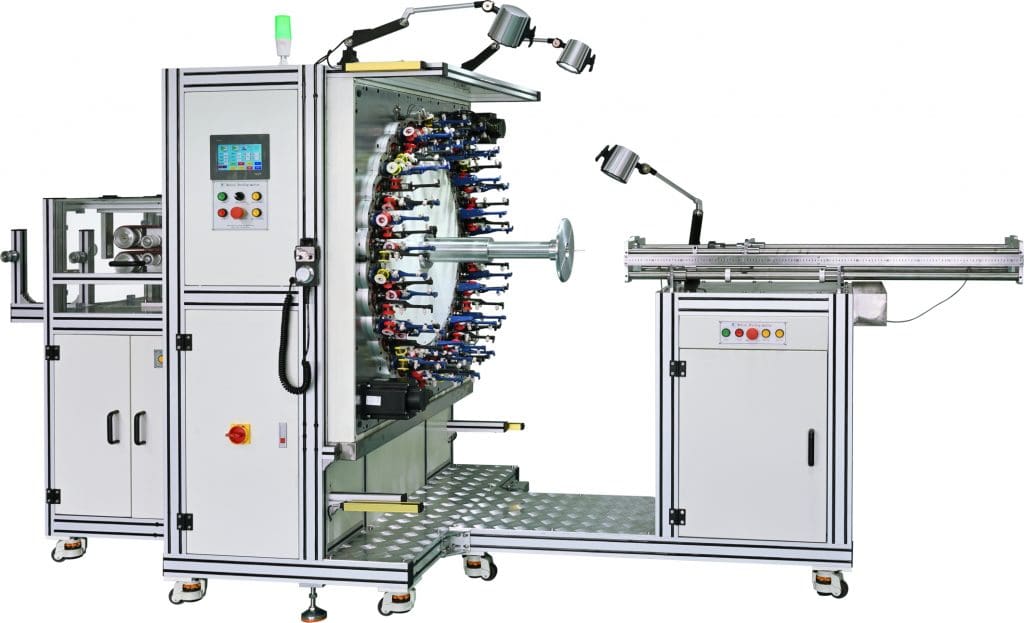

Stent and Occluder Braiding Machine Series

MB  Stent and Occluder Braiding Series is ideally for your braiding of medical devices include:

  • Braided Stents
  • Embolic Protection Devices
  • Occlusion Devices
  • Retrieval Devices
  • Braided Structural Heart Implants

This series has a wide spindle number choice from 16 to 288, and supports continuous variable-pitch braiding with continuous or sudden changes of  braiding pitch up to 300 PPI.

Equipped with crawler feeding and guide retaining devices, which ensure the braiding layer to be protected in production. In addition, we could also help you to promote your efficiency with 4G remote control system.

imageedit_18_4231223128
stent2

Technical specifications:



ModelMB-16A1WZSpindleM1
Number of spindles16Bobbin volume27 cc
Voltage/power220v/2kwBraiding materialNylon, stainless steel, NiTi
Table speed240 rpmCore diameter≤5 mm
Output480 Picks/minReel sizeФ200-400 mm
Braiding density10-300 PPIControl panel7 inch touch screen

Other Models:

ModelMB-24A1WZMB-32A1WZMB-36A1WZMB-48A1WZMB-56A1WZMB-64A1WZ
Number of spindles243236485664
Voltage/power220 V / 2 KW220 V / 3 KW220 V / 3 KW220 V / 3 KW220 V / 3 KW220 V / 4 KW
Table speed240 RPM240 RPM240 RPM240 RPM240 RPM240 RPM
Core diameter≤10 mm≤15 mm≤15 mm≤20 mm≤25 mm≤30 mm
Output480 Picks/min480 Picks/min480 Picks/min480 Picks/min480 Picks/min480 Picks/min

Medical Stent and Occluder Braiding Machine with 72 spindles

stent and occluer braiding machine

Technical Specifications:

ModelMB-72A1WZSpindleM1
Number of spindles72Bobbin volume27cc
Voltage/power220v/4kwBraiding materialStainless steel, NiTi
Table speed240 rpmCore diameter≤35mm
Output480 picks/minTraction480mm
Braiding density10-300PPIControl panel7 inch touch screen

Other Models:

ModelMB-96A1WZMB-120A1WZMB-144A1WZMB-288A1WZ
Number of spindles96120144288
Voltage/power220 V / 4 KW220 V / 6 KW220 V / 6 KW220 V / 12 KW
Table speed240 RPM240 RPM240 RPM240 RPM
Core diameter≤40 mm≤50 mm≤60 mm≤80 mm
Output480 picks/min480 picks/min480 picks/min480 picks/min
Stent braiding machine
