Catheter Braiding Machine
Our Catheter Braiding Machine is designed for the production of braid-reinforced catheter shaft which has applications in:
- Interventional Vascular,
- Neurovascular, Electrophysiology,
- Endo-surgery,
- Diagnostic,
- and other minimally invasive applications.
With the Schneider control system, our braiding machine provides our customers best in class braiding solution which improves the functionality of a catheter shaft by improving pushability, stiffness, torque response, flexibility, kink, and pressure resistance.
Braiding Material:
- Wire (round and flat): Stainless Steel, Copper, Niti, Titanium, Platinum, Cobalt-Chromium, etc.
- Fibers: Nylon, Polyester, Dyneema, Kevlar, Vectran, Speectra, PET, PEN, PP, PEEK, etc.
Material size: starts from Φ 0.0125mm/0.0005”.
Braiding PPI: 10-300 PPI, up to 10 segments variable PPI braiding with continuous or step change.
Braiding Machine Specifications:

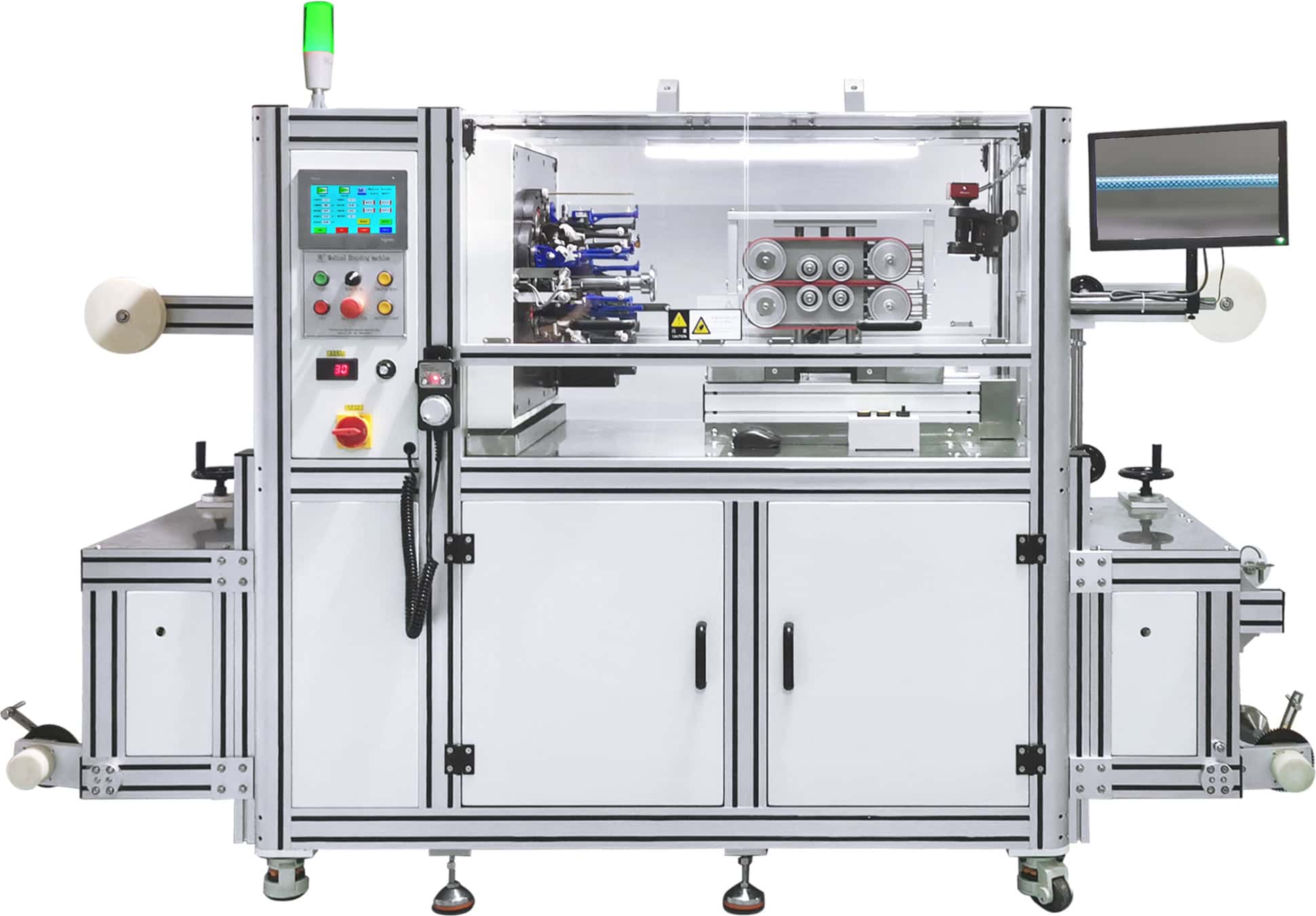

| Model | MB-16A1WG | Spindle | M1 |
| Number of spindles | 16 | Bobbin volume | 27cc |
| Voltage/power | 220v/2kw | Control panel | 7 inch touch screen |
| Table speed | 300 rpm | Core diameter | ≤10 mm |
| Output | 600 Picks/min | Braiding Pattern | 1×2, 2×2, 1×1 (half load, 8 carriers) |
Other Models:
| Model | Number of Carriers | Voltage/power | Table Speed | Output |
| MB-24A1WG | 24 | 220V / 2KW | 300 rpm | 600 Picks/min |
| MB-32A1WG | 32 | 220V /3KW | 300 rpm | 600 Picks/min |
| MB-48A1WG | 48 | 220V /3KW | 300 rpm | 600 Picks/min |
